uFrame
uFrame is the standalone version of the radar-equipped sensors found in uSkan product line. Most notably, uSkan is designed from a multitude of uFrame modules daisy-chained together. Therefore, while uCore cannot provide the same imaging resolution as a uSkan, it can take measurements at twelve distinct positions at the same speed of 3000 Hz at a fraction of the cost.
Like its single-sensor counterpart uCore, uFrame is designed for maximum versatility for OEM whose main concern is about compacity and integration of a diverse ecosystem of quality control equipment that are based on distinct technologies, all the while keeping a low acquisition cost.

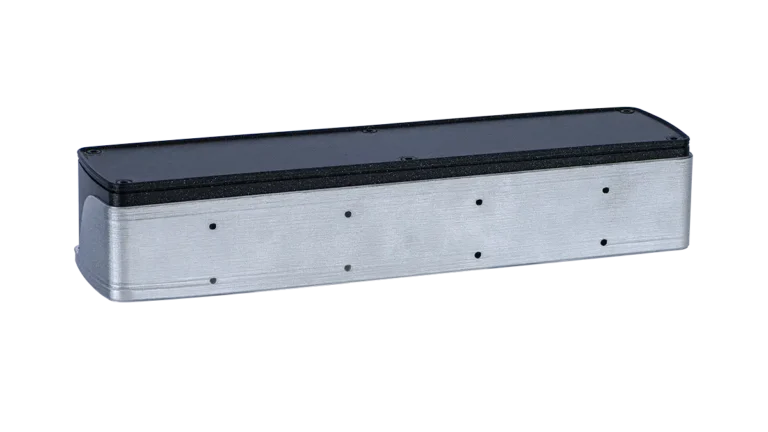

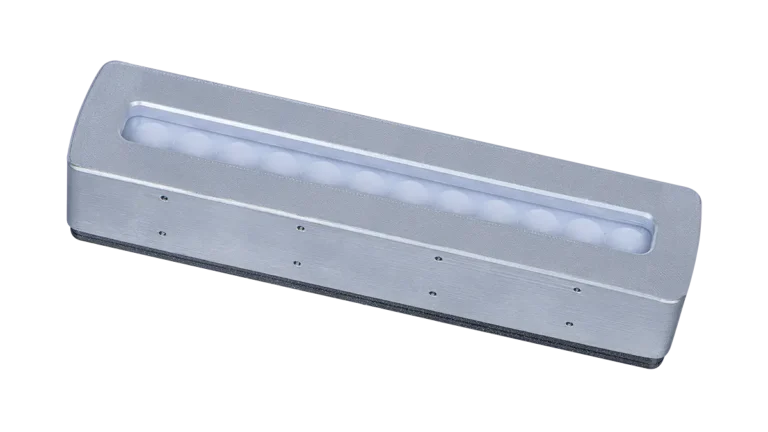

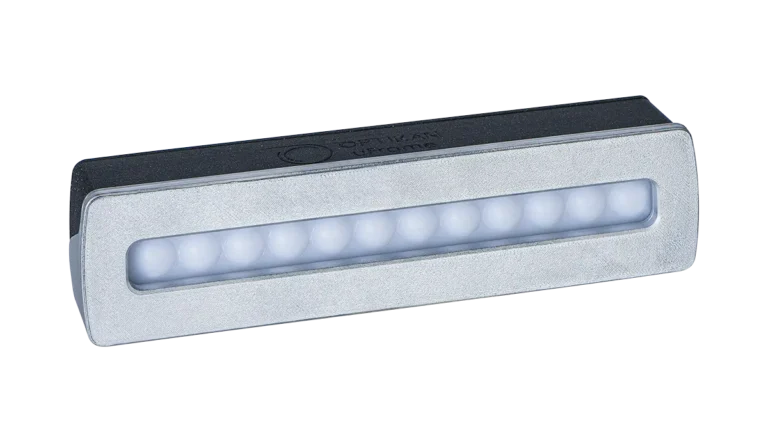

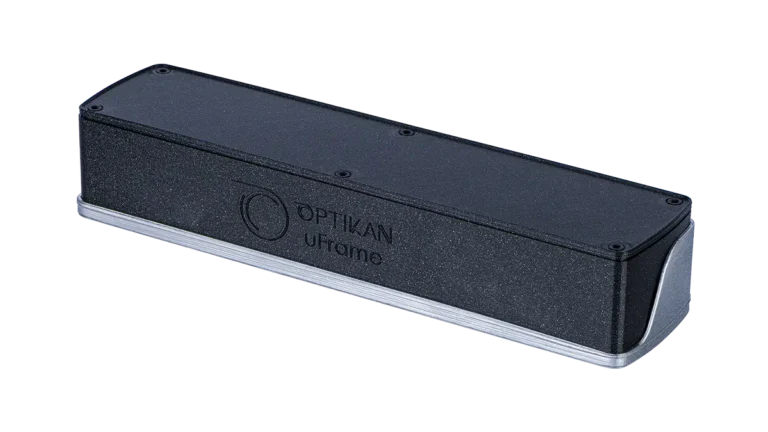

uFrame
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Comment |
|---|---|---|---|---|---|---|
| Scanning width | Wscan | - | 192 | - | mm | For a single imaging module. |
| Acquisition rate | facq | - | - | 3000 | Hz | - |
| Lengthwise resolution | RX | - | 1 | - | mm | Resolution in the conveyor axis. |
| Transverse resolution | RY | - | 16 | - | mm | Resolution perpendicular to the conveyor. |
| Signal to Noise Ratio | SNR | - | - | 35 | dB | - |
| Optical power | Popt | - | 7.8 | 11.8 | dBm | Total output power over a 0.003 m2 area. |
| Maximum range | Rmax | - | 250 | - | mm | Limited by the sample rate of ADCs. |
| Beam divergence | θ | - | TBA | - | ° | Half-angle for each collimation lens. |
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Comment |
|---|---|---|---|---|---|---|
| Length | L | - | - | 210 | mm | - |
| Width | W | - | - | 120 | mm | - |
| Height | H | - | - | 70 | mm | - |
| Weight | m | - | - | 1000 | g | - |
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Comment |
|---|---|---|---|---|---|---|
| Input voltage | Vin | 9.6 | 12 | 13.2 | V | Powered using a 5.5x2.5 mm 12V DC Barrel Plug. |
| Power draw | Pin | - | 26.41 | 34.08 | W | Computed from sub-components datasheets. |
